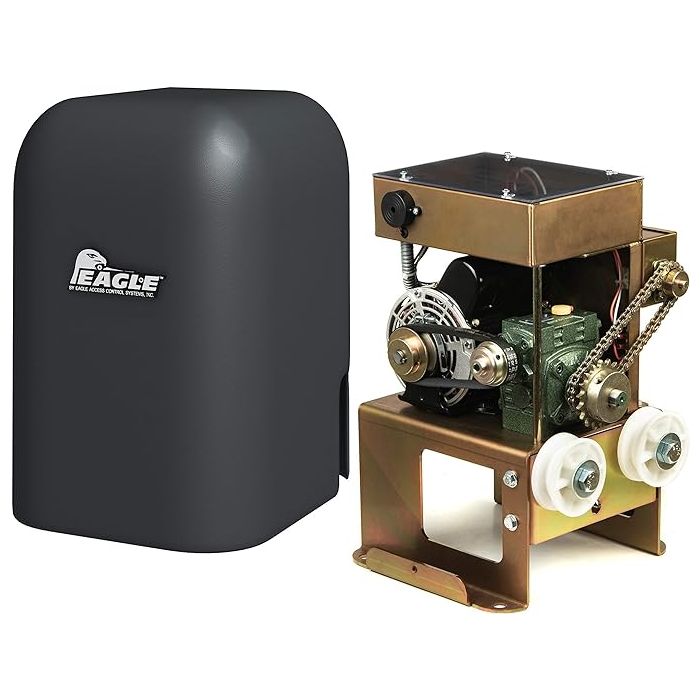

EAGLE-I SLIDE GATE OPERATOR W/ MONITORED PHOTO EYE

Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle 1 slide gate operator is designed for residential applications and is built for gates up to 18 feet or 300lbs. 20 feet of nickel-plated chain and a no weld chain kit are standard and help for easy installation. The Eagle 1 model is equipped with a 1/2 horsepower motor continuous duty AC motor and uses the state-of-the-art AC mini control board, backed of course by our best-in-class 5-year warranty.

Standard Features

• 2-Wire Master/Slave with Global Inputs
• Open/Close Delay
• Motor Brake
• 24 VDC Output for MAG Lock
• 24 VAC Auxiliary Power Output
• Auto-Close Timer (1-60 sec.)

Power

• 1/2 HP Continuous Duty AC
• 115 VAC @ 60 HZ 5.2 AMP

Manual Release

• Fail-Secure(FSC): Use Crank to Open

Gate Capacity & Operation

• Maximum Gate: 18 ft & 300 lbs
• 12” per second travel
• Rated Continuous Duty

Dimensions

• 20″ (h) x 15″ (w) x 12″ (d)

Shipping Weight

• Eagle-I: 75 lbs
