HWOSDOV05-110-SP

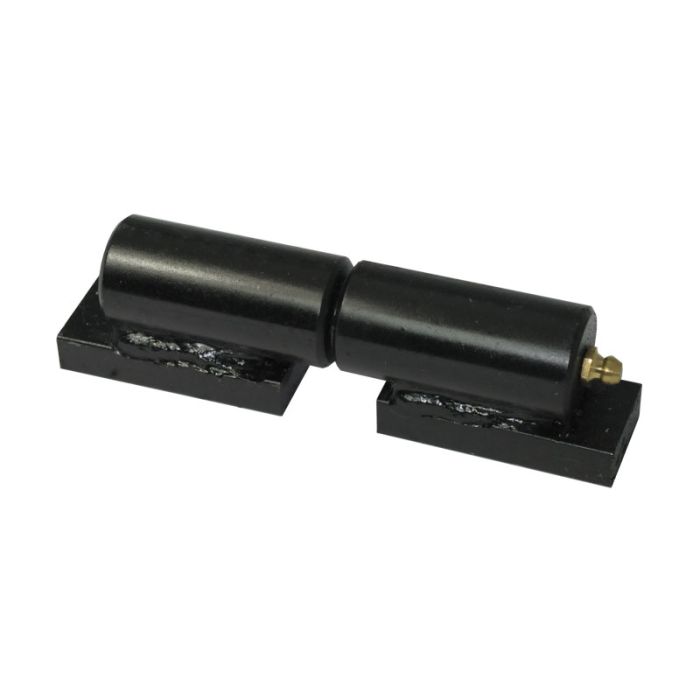

5 Inches Heavy Duty Barrel Hinges Specials
In stock
Specification
- Barrel Hinge: 5"
- Diameter: 1"
- Pin: 5/8"
- Plate Width: 1-1/2"
- Plate Length: 2"
- Gap: 1-1/2"
- A pair may hold up to 450lbs.
Hinge measures 5" in length including weld on mounting plates. Barrel measures 1" in diameter plus 5/16" mounting plates. Hinge pin is 5/8" diameter x 1-1/16" long & extends into the upper barrel. 1-5/8" spacing from post to gate frame for 90 degree swing. Hinge pin sits on ball bearing for easy pivot. Zerk fitting at top for lubrication with grease gun.
SKU
HWOSDOV05-110-SP
Dimension Height
5.000000
Dimension Length
1.000000
Dimension Width
1.000000
